DS-2DE4425IW-DE
Product Name

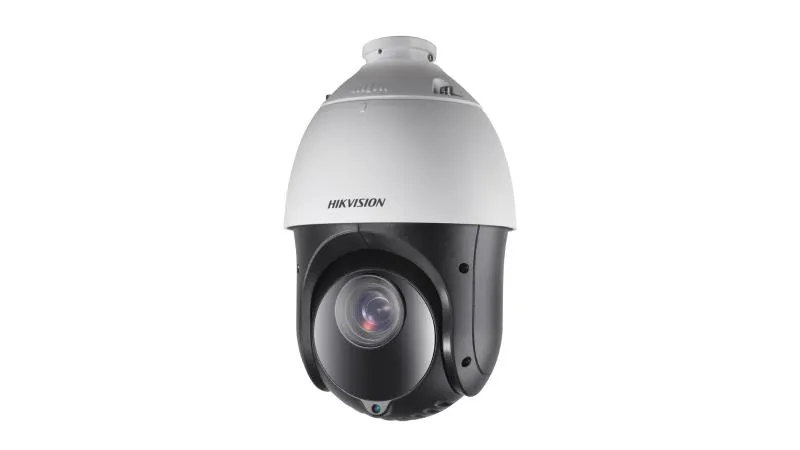

Hikvision DS-2DE4425IW-DE 4 MP 25× Network IR Speed Dome
Short Description
The Hikvision DS-2DE4425IW-DE is a professional outdoor PTZ speed dome designed for wide-area and long-distance surveillance. It features a 4 MP 1/2.8″ Progressive Scan CMOS sensor, 25× optical zoom, 16× digital zoom and up to 100 m IR illumination. Its DarkFighter technology provides strong low-light performance, while AcuSense intelligent analytics can distinguish human and vehicle targets. Hikvision
Key Features
– 4 MP high-resolution imaging
– 1/2.8″ Progressive Scan CMOS
– 25× optical zoom
– 16× digital zoom
– 4.8–120 mm motorized lens
– Powered by DarkFighter technology
– Up to 100 m IR illumination
– 360° endless pan
– -15° to 90° tilt with Auto Flip
– 120 dB WDR
– BLC, HLC and 3D DNR
– Digital defog
– Electronic Image Stabilization
– Regional focus and exposure
– H.265+/H.265/H.264+/H.264 compression
– MicroSD storage up to 256 GB
– Up to 300 presets
– 8 patrols with up to 32 presets each
– AcuSense human and vehicle classification
– Face capture — up to 5 faces simultaneously
– Intrusion and line-crossing detection
– PoE 802.3at
– IP66 weather protection
– 6000 V lightning protection Hikvision
Technical Specifications
Specification Details
Image Sensor 1/2.8″ Progressive Scan CMOS
Resolution 2560 × 1440 / 4 MP
Optical Zoom 25×
Digital Zoom 16×
Focal Length 4.8–120 mm
Horizontal FOV 55°–2.4°
Vertical FOV 33°–1.4°
Minimum Illumination Color 0.005 Lux; B/W 0.001 Lux
IR Distance Up to 100 m
Pan 360° endless
Tilt -15° to 90°
WDR 120 dB
Video Compression H.265+/H.265/H.264+/H.264
Storage MicroSD up to 256 GB
Ethernet 10/100 Mbps RJ45
Power 12 VDC / PoE 802.3at
Maximum Power 18 W
Protection IP66
Dimensions Ø164.5 × 290 mm
Weight Approx. 2 kg
Operating Temperature -30°C to 65°C

Intelligent Functions
AcuSense: Human and vehicle target classification helps reduce irrelevant alarms.
Face Capture: Detects and captures up to five faces simultaneously.
Perimeter Protection: Supports line crossing, intrusion, region entrance and region exiting detection with human/vehicle target filtering. Hikvision
Applications
– Construction sites
– Roads and highways
– Airports
– Railway facilities
– Industrial compounds
– Warehouses
– Parking areas
– Commercial properties
– Large campuses
– Perimeter security
– Public spaces and venues
