DS-2SE3C404MWG-E/14
Product Name

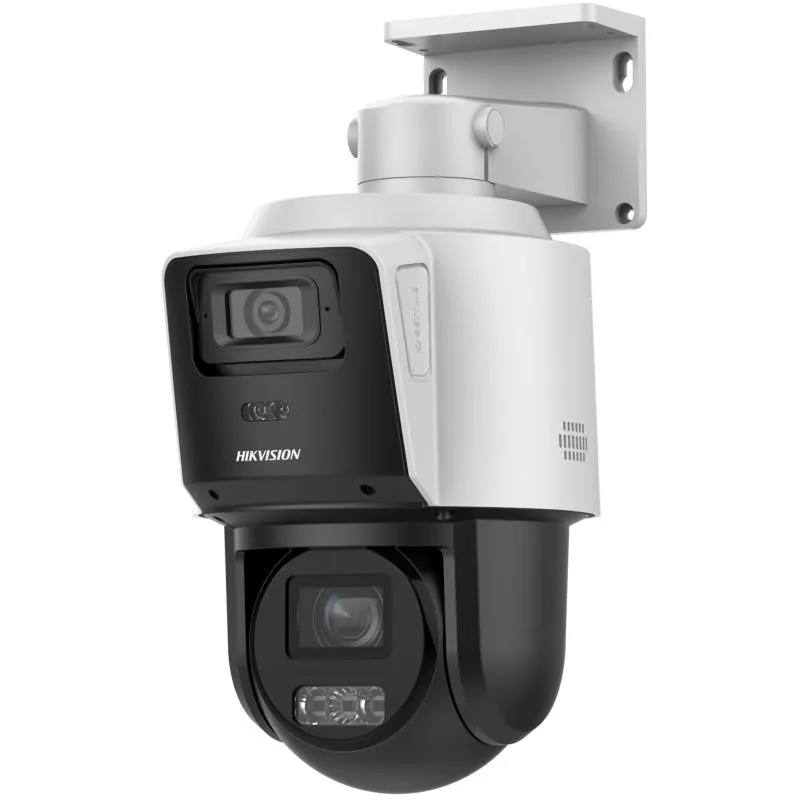

Hikvision DS-2SE3C404MWG-E/14 TandemVu 4MP+4MP 4× PoE PTZ Network Camera
Short Description
The Hikvision DS-2SE3C404MWG-E/14 is a dual-lens TandemVu PTZ network camera that combines a 4 MP fixed overview camera with a 4 MP PTZ camera in one unit. It is designed to capture a wide area while simultaneously providing detailed PTZ monitoring, with 4× optical zoom, 16× digital zoom, DarkFighter low-light performance and smart human/vehicle detection.
Key Features
- 4 MP + 4 MP dual-camera imaging
- 1/2.8″ Progressive Scan CMOS on both channels
- Fixed overview lens: 2.8 mm
- PTZ lens: 2.8–12 mm
- 4× optical zoom
- 16× digital zoom
- DarkFighter low-light technology
- Hybrid IR + white-light illumination
- PTZ IR range up to 40 m
- Overview IR range up to 30 m
- White-light range up to 30 m
- 120 dB WDR
- BLC, HLC and 3D DNR
- Digital defog
- Human and vehicle detection
- 360° PTZ pan range
- -5° to 90° PTZ tilt range
- Up to 300 presets
- 8 patrols with up to 32 presets each
- Built-in microphone and speaker
- MicroSD/SDHC/SDXC support up to 512 GB
- H.265 / H.264 / MJPEG
- 12 VDC and PoE+
- IP66 protection
- Surge and voltage transient protection
Technical Specifications
| Specification | Details |
|---|---|
| Overview Camera | 4 MP |
| PTZ Camera | 4 MP |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Overview Lens | 2.8 mm |
| PTZ Lens | 2.8–12 mm |
| Optical Zoom | 4× |
| Digital Zoom | 16× |
| Max. Resolution | 2560 × 1440 |
| Overview FOV | 114.9° horizontal |
| PTZ FOV | 98°–34.2° horizontal |
| PTZ Pan | 0°–350° |
| PTZ Tilt | -5°–90° |
| PTZ IR | Up to 40 m |
| Overview IR | Up to 30 m |
| White Light | Up to 30 m |
| WDR | 120 dB |
| Storage | MicroSD up to 512 GB |
| Audio | Built-in microphone + speaker |
| Ethernet | 10/100 Mbps RJ45 |
| Power | 12 VDC / PoE+ |
| Max. Power | 13.5 W |
| Protection | IP66 |
| Dimensions | 311.5 × 223.5 × 156 mm |
| Weight | Approx. 1.37 kg |
| Operating Temperature | -30°C to 50°C |
Intelligent Functions
The camera supports human and vehicle detection, intrusion detection, line crossing, region entrance and region exiting detection. The PTZ channel can also perform linked PTZ actions such as presets, patrol scans and pattern scans when an event occurs.
Applications
- Construction sites
- Roads and highways
- Industrial facilities
- Warehouses
- Airports
- Railway facilities
- Parking areas
- Commercial compounds
- Large outdoor premises
- Perimeter surveillance
- Parks and public spaces
