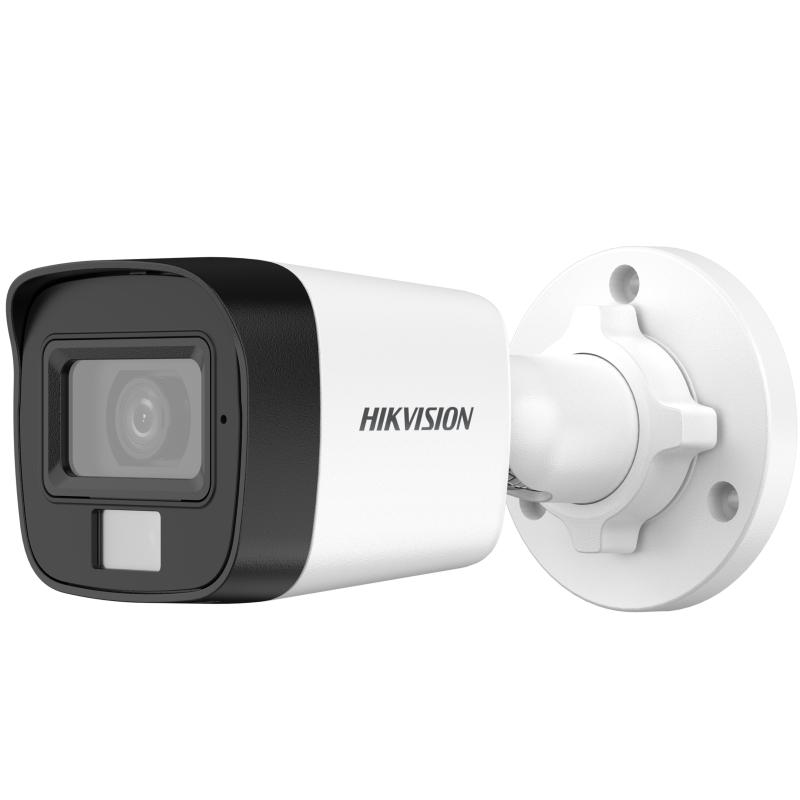

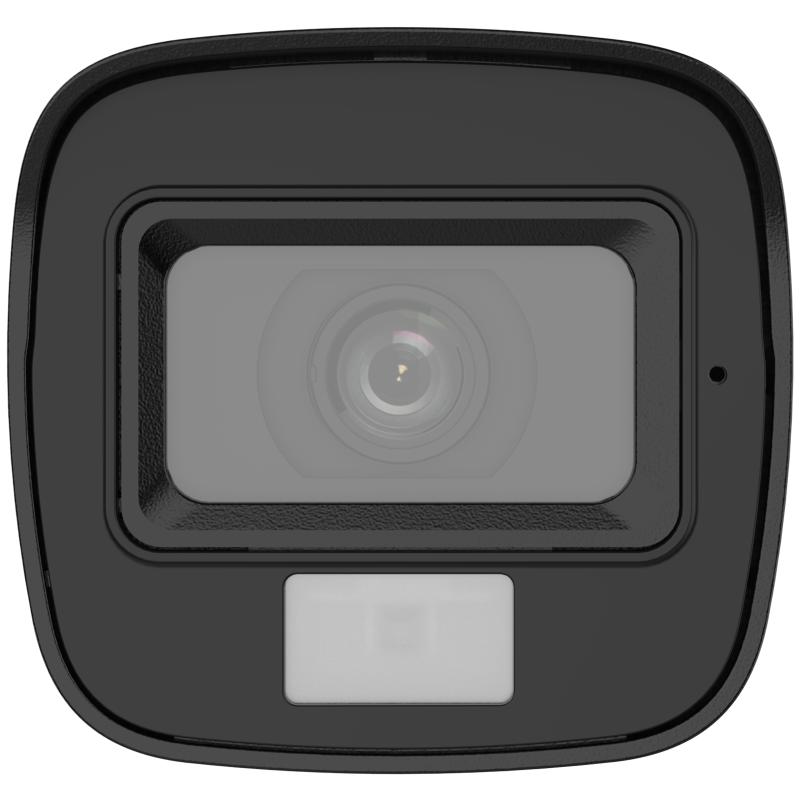

Hikvision DS-2CE16D0T-LPFS(3.6mm) 2MP Smart Hybrid Light Audio Fixed Mini Bullet Camera

The Hikvision DS-2CE16D0T-LPFS(3.6mm) is a versatile 2MP fixed mini bullet CCTV camera designed to provide dependable security monitoring during both daytime and nighttime conditions.

The camera features a 2MP CMOS image sensor and captures video at 1920 × 1080 Full HD resolution, providing clear footage for monitoring homes, businesses, offices, entrances, gates, warehouses and other security-sensitive locations.

Its 3.6mm fixed focal lens provides a 78° horizontal, 42° vertical and 92° diagonal field of view. This makes the 3.6mm version particularly suitable for focused monitoring of entrances, gates, corridors, driveways, storefronts and access points where a balanced field of view is required.

A major advantage of the camera is its Smart Hybrid Light system. The camera can use IR illumination up to 25 metres or white-light illumination up to 20 metres, giving installers flexibility when choosing how nighttime scenes should be illuminated.

The DS-2CE16D0T-LPFS also incorporates a built-in microphone and supports audio over coaxial cable, allowing compatible DVR systems to record both video and audio without requiring a separate microphone installation. The microphone has a pickup range of up to approximately 5 metres.

For challenging lighting conditions, the camera supports Digital WDR, BLC and HLC, helping improve visibility where bright and dark areas appear within the same scene. Smart IR and image enhancement functions further help optimize surveillance footage.

The camera supports TVI, AHD, CVI and CVBS video output, providing flexibility when connecting it to compatible DVR systems. Its IP67-rated housing provides protection against dust and water, making it appropriate for outdoor CCTV installations.

Key Features

• 2MP CMOS image sensor
• 1920 × 1080 Full HD resolution
• 3.6mm fixed focal lens
• 78° horizontal field of view
• Smart Hybrid Light
• Up to 25m IR illumination
• Up to 20m white-light illumination
• Built-in microphone
• Audio over coaxial cable
• Up to 5m microphone pickup range
• Digital WDR
• BLC and HLC
• Smart IR
• Auto/Color/B&W day/night modes
• TVI/AHD/CVI/CVBS switchable output
• IP67 dust and water protection
• 12V DC power
• HIKVISION-C communication
• -40°C to 60°C operating temperature

Application Scenarios

🏠 1. Home Security

Suitable for:

• Main entrances
• Gates
• Driveways
• Garages
• Compounds
• Apartment entrances
• Backyards

The 3.6mm lens is useful where you want more focused coverage rather than the wider view offered by the 2.8mm version.

🏪 2. Retail Shops

Ideal for:

• Shop entrances
• Cashier areas
• Retail floors
• Small supermarkets
• Showrooms
• Stock rooms

The built-in microphone can also provide audio recording when connected to a compatible DVR.

🏢 3. Offices

Recommended for:

• Reception areas
• Building entrances
• Corridors
• Parking entrances
• Office compounds
• Access points

🏫 4. Schools & Institutions

Suitable for:

• School gates
• Administration blocks
• Corridors
• Walkways
• Parking areas
• Building entrances

🏭 5. Warehouses & Industrial Facilities

Useful for:

• Warehouse entrances
• Loading areas
• Storage facilities
• Equipment areas
• Factory entrances
• Access points

🚧 6. Construction Sites

Can be installed around:

• Site entrances
• Site offices
• Material storage
• Equipment areas
• Perimeter access points

🚗 7. Gates, Driveways & Access Points

The 3.6mm / 78° horizontal FOV makes this variant particularly appropriate for defined monitoring zones such as gates, driveways and entrances.

Technical Specifications
