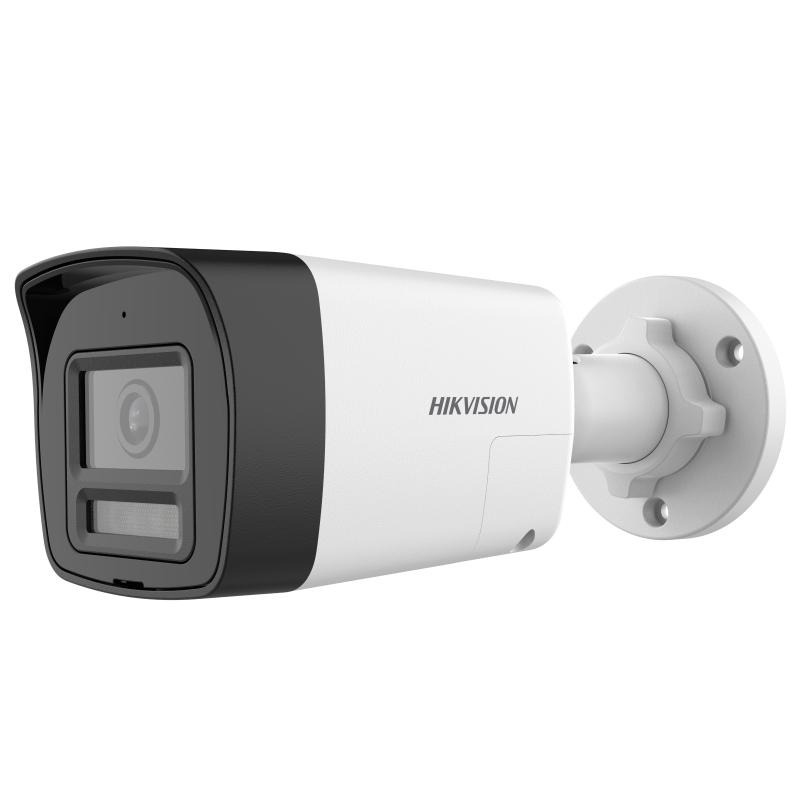

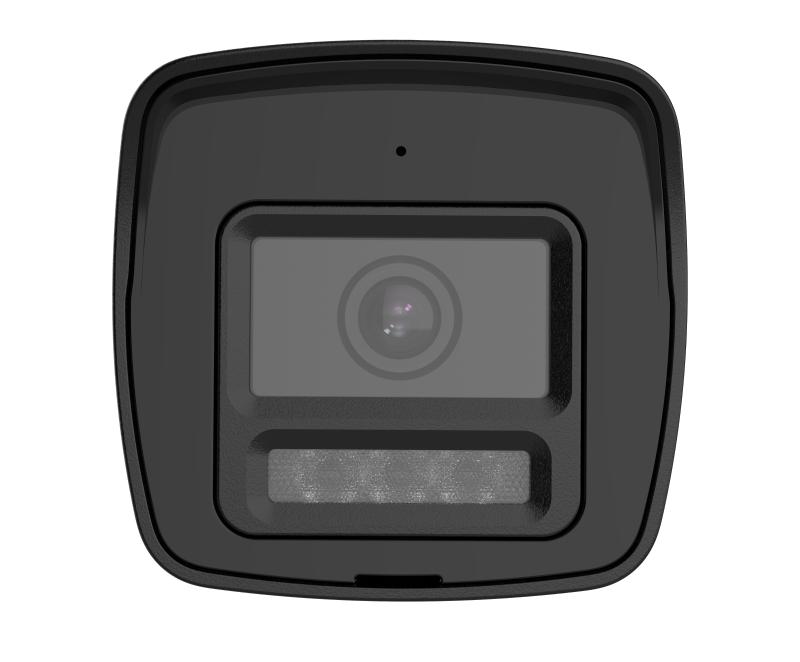

The Hikvision DS-2CE16D0T-LPTS is a 2MP Two-Way Audio Fixed Mini Bullet Camera designed for reliable video surveillance with interactive audio communication.
With a 1920 × 1080 Full HD resolution, the camera captures clear surveillance footage for monitoring entrances, shops, offices, compounds, warehouses, parking areas and other security-sensitive locations.
Its Smart-Hybrid Light system combines infrared and white-light illumination, providing up to 25 meters of IR range and up to 20 meters of white-light range for improved night-time monitoring.
A major advantage of the DS-2CE16D0T-LPTS is its built-in two-way audio system. The camera includes both a microphone and speaker, with audio transmission over coaxial cable. The microphone has a pickup radius of up to 5 meters, while the built-in 2W speaker provides audio within a radius of up to 5 meters.
The camera also supports Digital WDR, BLC, HLC, HLS, DWDR and 2D DNR to improve image quality in challenging lighting conditions.
With an IP67-rated housing, the camera is protected against dust and water and can be used in suitable indoor and outdoor installations.
Key Features
- 2MP Full HD resolution – 1920 × 1080
- Fixed mini bullet design
- 2.8mm and 3.6mm lens options
- Smart-Hybrid Light
- Up to 25m IR illumination
- Up to 20m white-light illumination
- Built-in microphone
- Built-in 2W speaker
- Two-way audio communication
- Audio over coaxial cable
- Microphone pickup up to 5m radius
- Digital WDR
- BLC, HLC, HLS and DWDR
- 2D DNR noise reduction
- Smart IR
- ICR day/night switching
- IP67 dust and water protection
- 12V DC power
- M12 lens mount
- TVI 1080p @ 25/30 fps
Technical Specifications
| Specification | Details |
|---|---|
| Model | DS-2CE16D0T-LPTS |
| Camera Type | 2MP Two-Way Audio Fixed Mini Bullet |
| Image Sensor | 2MP CMOS |
| Maximum Resolution | 1920 × 1080 |
| Lens | 2.8mm / 3.6mm fixed |
| Lens Mount | M12 |
| 2.8mm FOV | 105° H / 59° V / 127° diagonal |
| 3.6mm FOV | 87° H / 46° V / 105° diagonal |
| Minimum Illumination | 0.01 Lux @ F1.6, AGC ON |
| IR Range | Up to 25m |
| White Light Range | Up to 20m |
| Supplement Light | Smart / IR / White Light |
| Day/Night | ICR |
| WDR | Digital WDR |
| Noise Reduction | 2D DNR |
| Audio | Built-in microphone & speaker |
| Audio Communication | Two-way audio |
| Microphone Pickup | Up to 5m radius |
| Speaker | 2W |
| Speaker Range | Up to 5m radius |
| Audio Transmission | Audio over coaxial |
| Video Output | HD analog |
| Frame Rate | 1080p @ 25/30 fps |
| Power Supply | 12V DC ±25% |
| Maximum Power | 5.7W |
| Protection | IP67 |
| Material | Plastic |
| Dimensions | 179 × 66 × 69.1mm |
| Operating Temperature | -40°C to 60°C |
| Humidity | ≤90%, non-condensing |
| Communication | HIKVISION-C |
| Weight | Approx. 245g |
