DS-2SE4C425MWG-E
I found the official Hikvision specifications. This is a TandemVu dual-camera speed dome, combining a fixed overview camera with a 4 MP PTZ camera. Hikvision’s current documentation lists the corresponding DS-2SE4C425MWG-E/14 variant as a 4+4 MP, 25× ColorVu & IR AcuSense Network Speed Dome. Hikvision
Product Name

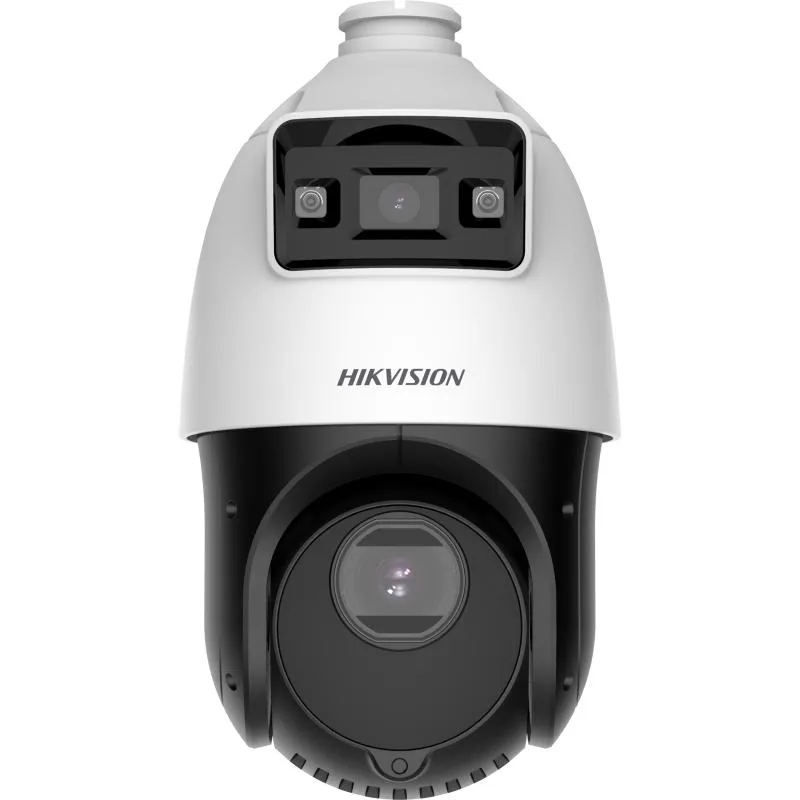

Hikvision DS-2SE4C425MWG-E TandemVu 4+4 MP 25× ColorVu & IR AcuSense Network Speed Dome
Short Description
The Hikvision DS-2SE4C425MWG-E is an advanced TandemVu network speed dome designed to provide both wide-area surveillance and detailed PTZ monitoring. It combines 4 MP overview imaging with 4 MP PTZ imaging, 25× optical zoom, ColorVu and DarkFighter technologies, intelligent human and vehicle classification, and long-range IR illumination. Hikvision
Key Features
- 4 MP + 4 MP dual-camera imaging
- 25× optical zoom
- 16× digital zoom
- ColorVu technology
- DarkFighter low-light technology
- AcuSense intelligent human and vehicle classification
- Up to 100 m IR illumination
- Up to 30 m white-light illumination
- 360° endless pan
- PTZ tilt range of -15° to 90°
- True WDR
- BLC, HLC and 3D DNR
- Digital defog
- Electronic image stabilization
- Built-in dual microphones
- Built-in speaker
- Active strobe light and audio alarm
- MicroSD storage up to 512 GB
- PoE+ support
- IP67 protection
- Supports Hik-Connect and HikCentral Pro Hikvision
Technical Specifications
| Specification | Details |
|---|---|
| Overview Camera | 4 MP |
| PTZ Camera | 4 MP |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| PTZ Optical Zoom | 25× |
| Digital Zoom | 16× |
| PTZ Lens | 5–125 mm |
| Overview Lens | 2.8 mm |
| PTZ Pan | 360° endless |
| PTZ Tilt | -15° to 90° |
| IR Range | Up to 100 m |
| White Light | Up to 30 m |
| Video Compression | H.265 / H.264 / MJPEG |
| Storage | MicroSD up to 512 GB |
| Audio | Built-in dual microphones + speaker |
| Network | 10/100 Mbps RJ45 |
| PoE | IEEE 802.3at PoE+ |
| Protection | IP67 |
| Operating Temperature | -30°C to 65°C |
| Dimensions | Ø166 × 294.8 mm |
| Weight | Approx. 3 kg |
Intelligent Functions
The camera supports human and vehicle target classification, face capture, regional people counting, intrusion detection, line crossing, region entrance/exit detection and smart linkage/tracking. Hikvision
Applications
- Highways and major roads
- Construction sites
- Airports
- Railway facilities
- Industrial compounds
- Warehouses
- Commercial properties
- Parking facilities
- Perimeter security
- Large outdoor premises
- Public spaces and venues
