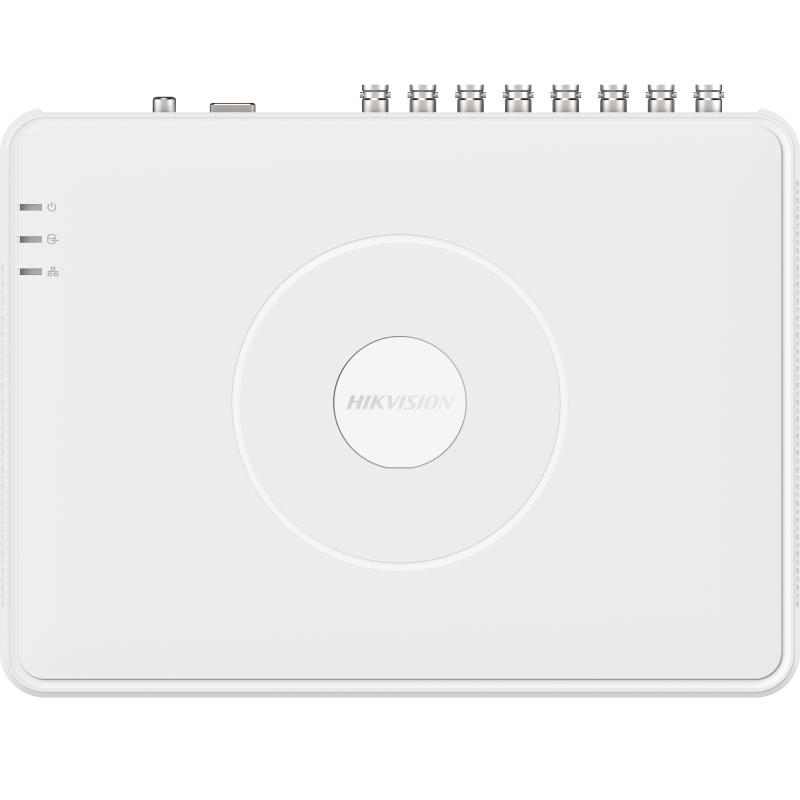

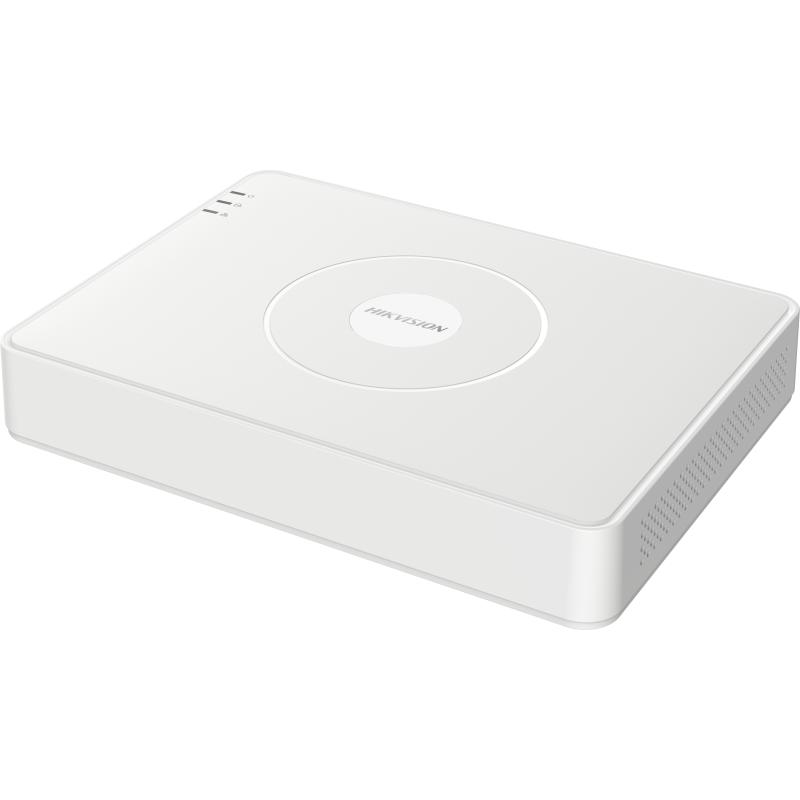

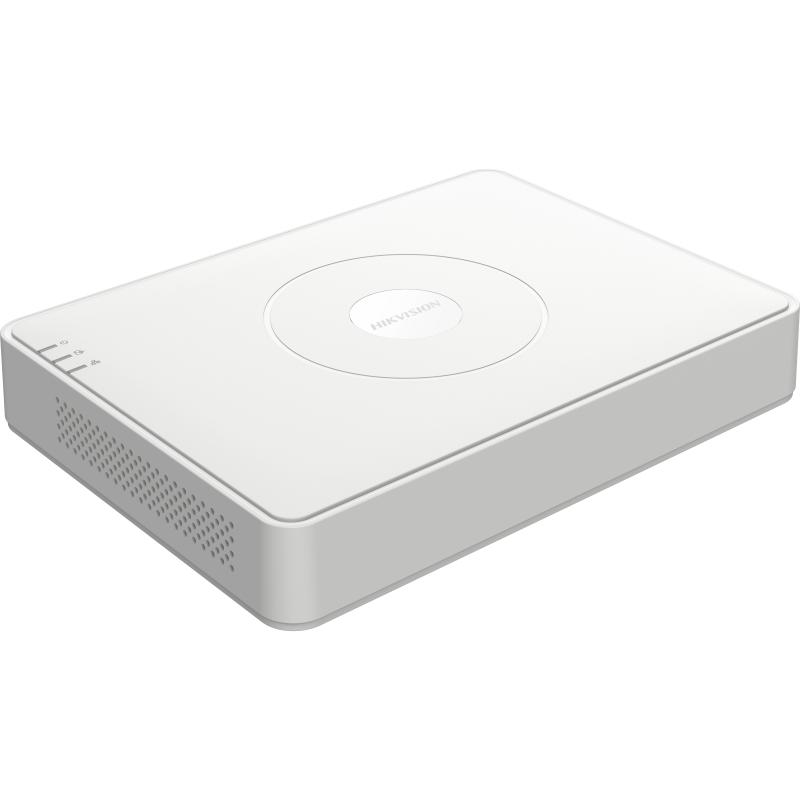

Hikvision DS-7116HGH-M1/T 16-Channel H.265 Turbo HD DVR
The Hikvision DS-7116HGH-M1/T is a 16-channel Mini 1U Turbo HD DVR designed for reliable CCTV recording and hybrid surveillance systems. It supports HDTVI, AHD, CVI, CVBS and IP cameras, with up to 18 IP camera inputs at up to 5MP. H.265 Pro+ compression reduces storage requirements, while Motion Detection 2.0 uses deep-learning human and vehicle classification to help reduce false alarms.
Key Features
- 16-channel DVR – Supports up to 16 analog cameras
- Up to 18 IP camera inputs – Supports IP cameras up to 5MP
- H.265 Pro+ compression – Reduces storage and bandwidth requirements
- Motion Detection 2.0 – Human and vehicle classification
- 1080p Lite recording – Supports all channels
- 5-in-1 video support – HDTVI, AHD, CVI, CVBS and IP
- Two-way audio – Supports HDTVI two-way audio technology
- Audio over coaxial cable – Simplifies audio-enabled installations
- Hik-Connect & DDNS – Enables remote monitoring and network management
- 1 SATA interface – Supports up to 6TB per HDD

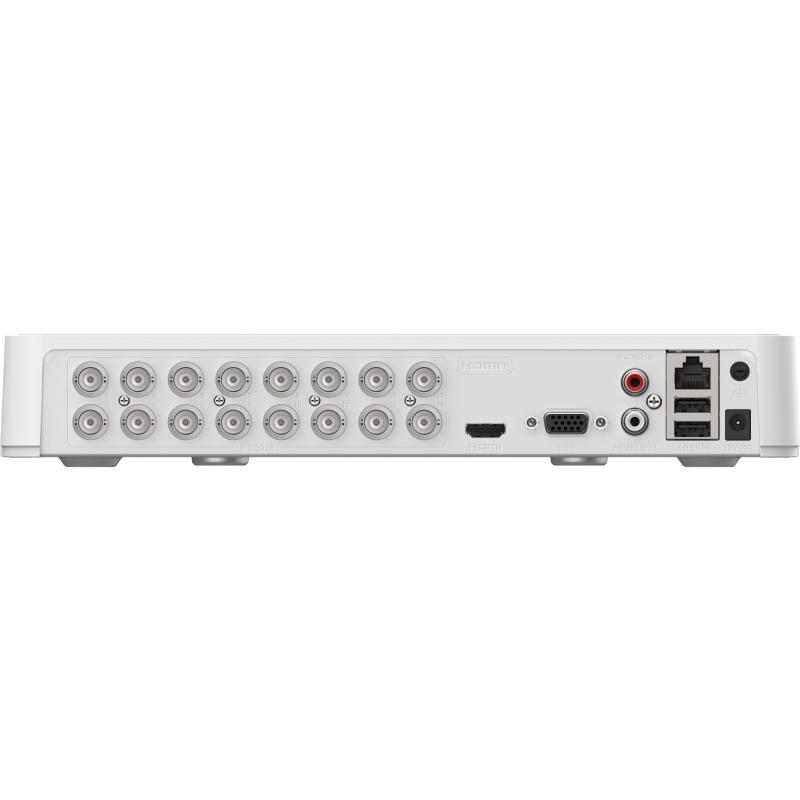

- HDMI and VGA outputs – Supports local monitoring
Application Scenarios
Ideal for:
- Commercial buildings
- Shops and supermarkets
- Warehouses and industrial facilities
- Offices
- Hotels and apartments
- Schools and institutions
- Construction sites
- Large residential compounds
Technical Specifications
| Specification | Details |
|---|---|
| Model | DS-7116HGHI-M1/T |
| Device Type | 16-Channel Mini 1U DVR |
| Analog Inputs | 16 channels |
| IP Inputs | Up to 18 channels |
| Max. IP Resolution | Up to 5MP |
| Recording | Up to 1080p Lite @ 15 fps |
| Compression | H.265 Pro+ / H.265 Pro / H.265 |
| Video Inputs | HDTVI / AHD / CVI / CVBS / IP |
| Audio | Coaxial + RCA |
| Storage | 1 SATA, up to 6TB |
| Remote Access | Hik-Connect & DDNS |
| Video Outputs | HDMI + VGA |
| USB | 2 × USB 2.0 |
| Power | 12V DC |
