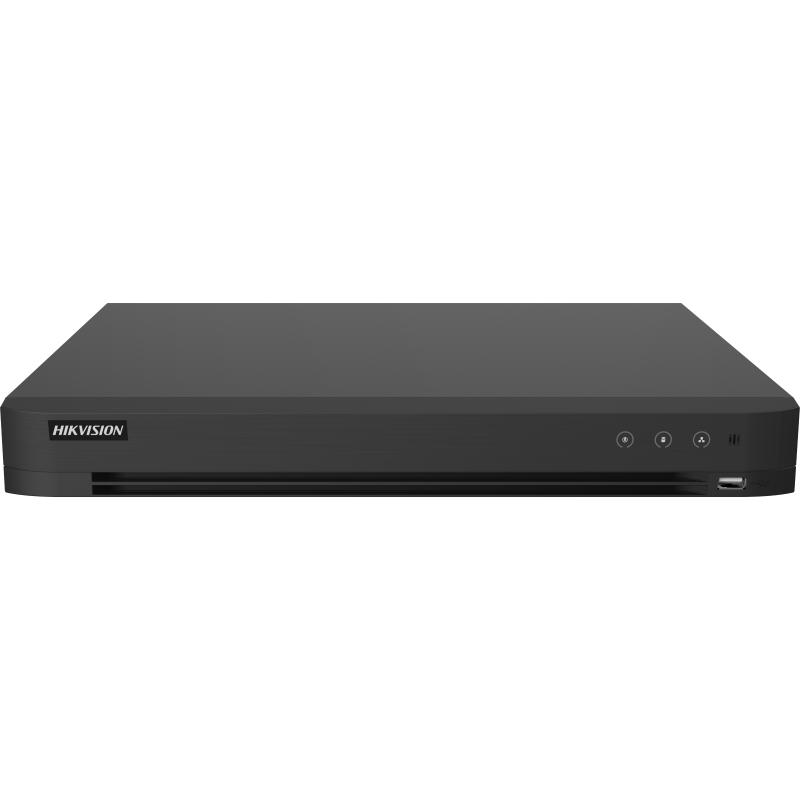

The Hikvision iDS-7232HQHI-M2/XT is a 32-channel AcuSense Turbo HD DVR designed for large and advanced CCTV installations. It supports HDTVI, AHD, CVI, CVBS and IP cameras, with up to 40 IP camera inputs at up to 6MP. Its deep-learning features provide human and vehicle classification, perimeter protection, facial recognition and Motion Detection 2.0, while H.265 Pro+ compression helps reduce storage requirements.

Key Features

• 32-channel DVR – Supports up to 32 analog cameras
• Up to 40 IP camera inputs – Supports IP cameras up to 6MP
• AcuSense technology – Intelligent human and vehicle classification
• Perimeter protection – Deep-learning intrusion and line-crossing detection
• Facial recognition – Supports up to 4-channel facial recognition
• AcuSearch – Quickly searches recordings using intelligent event analysis
• Motion Detection 2.0 – Human and vehicle classification across analog channels
• H.265 Pro+ compression – Reduces storage and bandwidth requirements
• Up to 3K/5MP Lite recording – High-resolution recording capability
• 5-in-1 video support – HDTVI, AHD, CVI, CVBS and IP
• Two-way audio – Supports HDTVI two-way audio on all channels
• Up to 24-channel 1080p decoding – Supports efficient multi-channel playback
• Hik-Connect & DDNS – Enables remote monitoring and management
• Dual SATA storage – Supports two HDDs
• Gigabit Ethernet – 10/100/1000 Mbps network connectivity

Application Scenarios

Ideal for:

• Large commercial buildings
• Warehouses and industrial facilities
• Hotels and apartment complexes
• Schools and institutions
• Supermarkets and retail chains
• Construction sites
• Large residential compounds
• Industrial and perimeter security
• High-security surveillance installations

Technical Specifications
