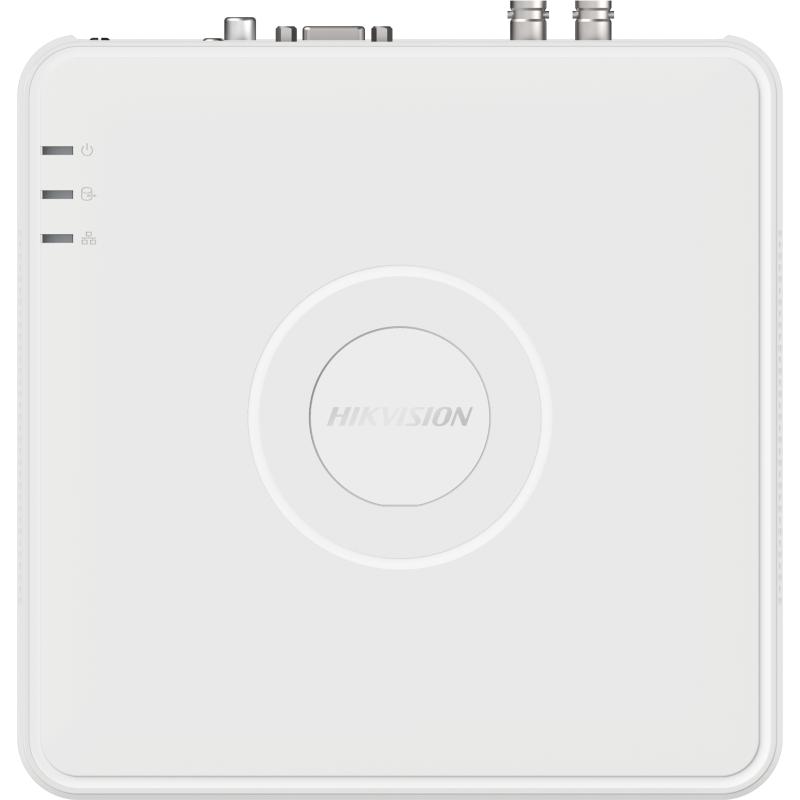

Hikvision DS-7104HGHI-M1 4-Channel H.265 DVR
The Hikvision DS-7104HGHI-M1 is a compact 4-channel Turbo HD DVR designed for reliable video recording and flexible CCTV system integration. It supports HDTVI, AHD, CVI, CVBS and IP cameras, with up to 5 IP camera inputs at up to 2MP. Its H.265 Pro+ compression reduces storage and bandwidth requirements, while Motion Detection 2.0 uses deep learning to distinguish between human and vehicle targets, helping reduce false alarms.
Key Features
- 4-channel DVR – Supports up to 4 analog cameras
- Up to 5 IP camera inputs – Supports IP cameras up to 2MP
- H.265 Pro+ compression – Reduces storage and bandwidth usage
- Motion Detection 2.0 – Human and vehicle classification
- 1080p Lite recording – Supports enhanced recording quality
- HDTVI/AHD/CVI/CVBS support – Compatible with multiple camera technologies
- Audio over coaxial cable – Simplifies audio-enabled installations
- Hik-Connect – Supports remote management and viewing
- HDMI and VGA outputs – Flexible monitor connectivity
- 1 SATA interface – Supports up to 4TB storage according to Hikvision’s current datasheet
- Up to 1200m HDTVI transmission – For 720p HDTVI signals under specified conditions
Application Scenarios
Ideal for:
- Homes and apartments
- Small offices
- Retail shops
- Restaurants
- Small warehouses
- Schools and institutions
- Small commercial premises
- Existing analog CCTV upgrades
Technical Specifications
| Specification | Details |
|---|---|
| Model | DS-7104HGHI-M1 |
| Device Type | 4-Channel Turbo HD DVR |
| Analog Inputs | 4 channels |
| IP Inputs | Up to 5 channels |
| Maximum IP Resolution | Up to 2MP |
| Compression | H.265 Pro+ / H.265 Pro / H.265 / H.264 |
| Recording | Up to 1080p Lite |
| Video Inputs | HDTVI / AHD / CVI / CVBS / IP |
| Audio | Audio over coaxial + RCA |
| Storage | 1 SATA, up to 4TB |
| Network | 10/100 Mbps Ethernet |
| Remote Access | Hik-Connect |
| Video Outputs | HDMI + VGA |
| USB | 2 × USB 2.0 |
| Power | 12V DC |
